Drive Medical Nitro Sprint Rollator Parts List & Diagram (Model 102662)
The Drive Medical Nitro Sprint (model 102662) is one of the most popular lightweight aluminum rollators on the market, with 10" front wheels, a 350 lb weight capacity, and a side-to-side folding frame that weighs just 19 lbs. Like any mobility aid that gets used every day, it will eventually need a replacement part or two — a worn brake cable, a cracked hub cap, or a new seat.
This guide is a complete parts reference for the Nitro Sprint. Every component from the official parts diagram is listed below with its manufacturer part number (SKU) and a link to order it. All Nitro Sprint parts ship free from HME Medical Shop.

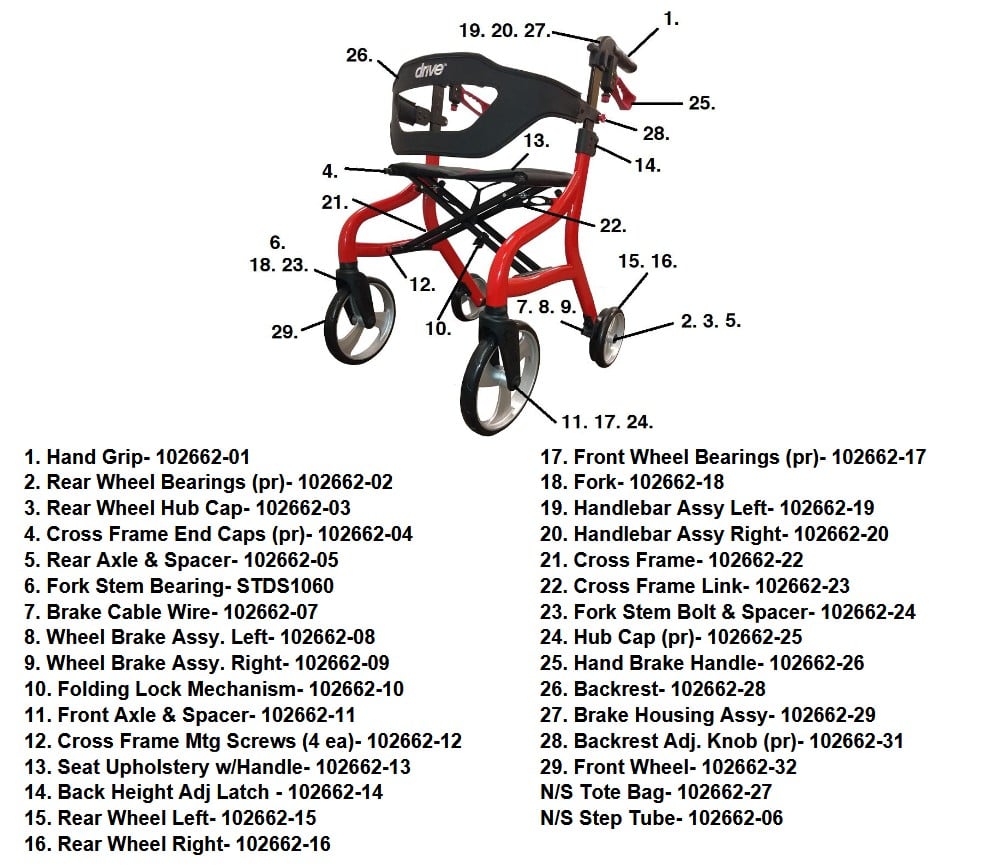

Nitro Sprint parts diagram
Drive Medical's exploded parts diagram numbers each component on the Nitro Sprint. Match the number on the diagram to the part number (for example, item 1 is Hand Grip 102662-01), then find that part in the tables below. If you're not sure which part you need, the full Nitro Sprint parts collection shows a photo of every item.
Important compatibility note
Nitro Sprint parts are not interchangeable with the standard Nitro Walker. The Sprint uses its own components, and these parts do not fit standard Nitro rollators made before 2024. Always confirm your model is the Nitro Sprint (102662) before ordering, and check whether you have the standard Sprint or the Nitro Sprint HD (Heavy Duty) — several HD parts have their own part numbers (see the HD table further down).
How to find your Nitro Sprint part number
- Look for a label or sticker on the frame — most Nitro Sprints are marked 102662 followed by a color or size code.
- Identify the component you need on the parts diagram and note its number.
- Match that number to the SKU (part number) in the tables below — each one ends in the diagram's item number, e.g.
102662-08for the left wheel brake. - Click through to order. Everything ships free.
Wheels, casters, axles & bearings
| Part | SKU |
|---|---|
| Front Wheel (10") | 102662-32 |
| Front Wheel Bearings (pair) | 102662-17 |
| Rear Wheel, Left | 102662-15 |
| Rear Wheel, Right | 102662-16 |
| Rear Wheel Bearings (pair) | 102662-02 |
| Rear Wheel Hub Cap | 102662-03 |
| Hub Cap (pair) | 102662-25 |
| Front Axle & Spacer | 102662-11 |
| Rear Axle & Spacer | 102662-05 |
Braking system
| Part | SKU |
|---|---|
| Hand Brake Handle | 102662-26 |
| Wheel Brake Assembly, Left | 102662-08 |
| Wheel Brake Assembly, Right | 102662-09 |
| Brake Cable Wire | 102662-07 |
| Brake Housing Assembly | 102662-29 |
Replacing the brakes? The left and right wheel brakes, hand brake handle, and brake cable work together — if your braking feels loose, inspect the cable and housing first, as these are the most common wear points.
Frame, fork & folding mechanism
| Part | SKU |
|---|---|
| Fork | 102662-18 |
| Fork Stem Bolt & Spacer (current) | 102662-24N |
| Fork Stem Bearing | STDS1060 |
| Cross Frame | 102662-22 |
| Cross Frame Link | 102662-23 |
| Cross Frame End Caps (pair) | 102662-04 |
| Cross Frame Mounting Screws (set of 4) | 102662-12 |
| Folding Lock Mechanism | 102662-10 |
| Step Tube | 102662-06 |
Handlebars & hand grips
| Part | SKU |
|---|---|
| Handlebar Assembly, Left | 102662-19 |
| Handlebar Assembly, Right | 102662-20 |
| Hand Grip | 102662-01 |
Seat & backrest
| Part | SKU |
|---|---|
| Seat Upholstery w/ Handle (red handle) | 102662-13 |
| Seat Upholstery w/ Handle (grey handle) | 102662-13B |
| Backrest | 102662-28 |
| Back Height Adjustment Latch | 102662-14 |
| Backrest Adjustment Knob (pair) | 102662-31 |
| Backrest Adjustment Knob (pair, gray) | 102662-31G |
Bags & accessories
| Part | SKU |
|---|---|
| Under-Seat Bag / Tote | 102662-27 |
| Universal Cup Holder | 102662-CUP |
Nitro Sprint HD (Heavy Duty) parts
The Nitro Sprint HD is the bariatric version of the rollator and uses several reinforced components with their own part numbers. If you have the HD model, order the parts below rather than the standard versions above.
| Part | SKU |
|---|---|
| Seat Upholstery w/ Handle (HD) | 102662-13HD |
| Backrest (HD) | 102662-28HD |
| Cross Frame (HD) | 102662-22HD |
| Cross Frame Link (HD) | 102662-23HD |
| Brake Housing Assembly, Left (HD) | 102662-29L |
| Brake Housing Assembly, Right (HD) | 102662-29R |
| Tote Bag (HD) | 102662-27HD |
Most commonly replaced Nitro Sprint parts
Based on everyday wear, these are the parts owners tend to reorder most often:
- Brake cable & housing — braking gets loose over time; the cable is the usual culprit.
- Rear wheels and bearings — the drive wheels take the most abuse, especially outdoors.
- Hand grips — foam and rubber grips wear smooth with daily use.
- Seat upholstery — the seat is where people sit and rest, so it's a frequent replacement.
- Hub caps and end caps — small plastic parts that crack or pop off.
Frequently asked questions
What model number is the Nitro Sprint rollator?
The Drive Medical Nitro Sprint is model 102662. Individual replacement parts use this number followed by a component code, such as 102662-08 for the left wheel brake assembly. The Heavy Duty (HD) version uses "HD" or L/R suffixes on several parts.
Do Nitro Sprint parts fit the standard Nitro Walker?
No. Nitro Sprint parts are specific to the Sprint and do not fit standard Nitro rollators made before 2024. Confirm you have the Nitro Sprint (102662) before ordering.
How much weight does the Nitro Sprint hold?
The standard Nitro Sprint supports up to 350 lbs and weighs about 19 lbs. For higher capacity, the Nitro Sprint HD (bariatric) model uses the reinforced HD parts listed above.
Do you charge for shipping on Nitro Sprint parts?
No — all Nitro Sprint replacement parts ship free from HME Medical Shop.
How do I know which part I need?
Match the numbered item on the Drive Medical parts diagram to the SKU in the tables above. Every part number ends in the diagram's item number. If you're still unsure, contact us with your model and a photo and we'll help you identify it.
Order Nitro Sprint replacement parts
Keep your rollator rolling smoothly. Browse the complete, photo-by-photo Nitro Sprint parts collection — every part ships free, and our team is here to help you find the exact component you need.
