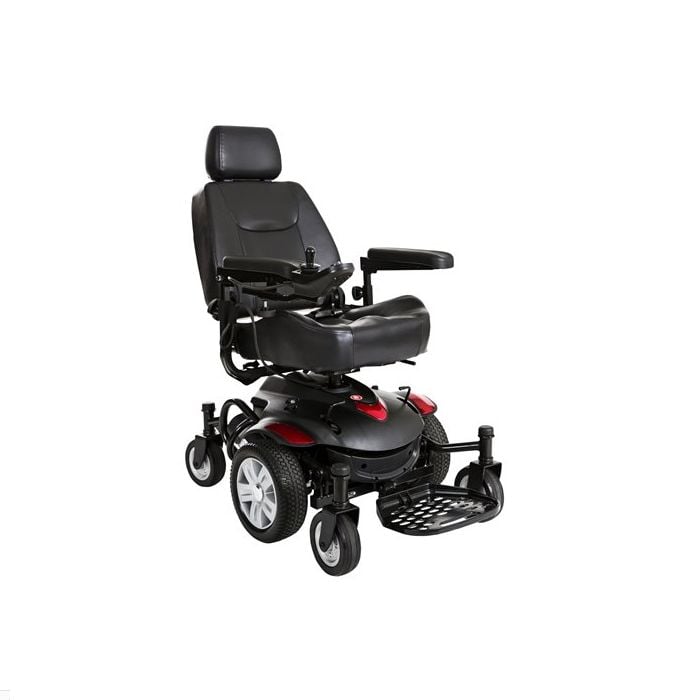

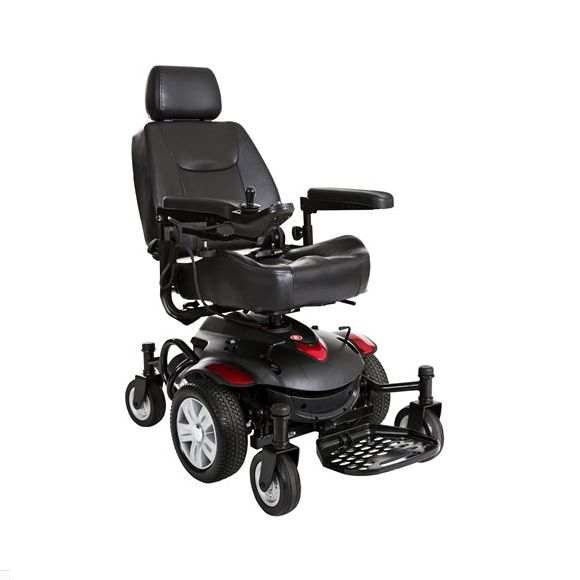

Titan AXS Mid-Wheel Drive Powerchair | 22" Seat

$1,999.00
Availability: In stock
SKU
TITANAXS-22CS
  • Captain’s seat, available in 7 different width and depth combinations, is height adjustable, reclines, swivels in 45° increments, and has a height adjustable headrest
  • Padded, contoured armrests with height, width and angle adjustment
  • Adjustable length controller mount
  • Interchangeable color panels in red and blue included
  • Flip-up footplate with height, depth and angle adjustment
  • Positioning belt included
  • Programmable controller with Bluetooth electronics for easy trouble-shooting and service
  • Flat-free, non-marking tires
  • Easy freewheel operation

No Charge Peace of Mind GuaranteeLimited Lifetime on Frame | 14 Month Limited on Electronics, Controller and Drive Train components | 6 Month Limited on Battery

  • Weight Capacity 300 lbs.
  • Top Speed 4 mph
  • Estimated Range 19 miles
  • Max. Climbing Angle 6°
  • Turning Radius 20"
  • Ground Clearance 2.5"
  • Overall Dimensions 39.25" (L) x 23.5" (W) x 44" (H)
  • Seat Dimensions 16" | 18" | 20" | 22"
  • Depth 16" | 18" | 20"
  • Back Height 18"
  • Seat-to-Floor Height 20.75" – 21.75"
  • Motor 320W x 4600RPM
  • Controller Dynamic Linx 40A
  • Batteries 12V x 33AH
  • Battery Charger 4A
  • Brakes Electromagnetic
  • Freewheel Mode Yes
  • Tires Flat Free
  • Caster Wheels 6" x 2"
  • Drive Wheels 10" x 3"
  • Base Weight 87 lbs.
  • Battery Weight (Pair) 44 lbs.
  • Seat Weight 40 lbs.
  • Total Weight 171 lbs.
More Information
SKUTITANAXS-22CS
mpnTITANAXS-22CS
brandDrive Medical
Assembly:Basic Assembly
ManufacturerDrive Medical
HSA/FSA QualifiedYes
Quantity1
colorRed and Blue
Weight171
TypeMid Wheel Drive Power Wheelchair
WidthStandard
Weight Capacity300
LengthStandard
upc822383933917
