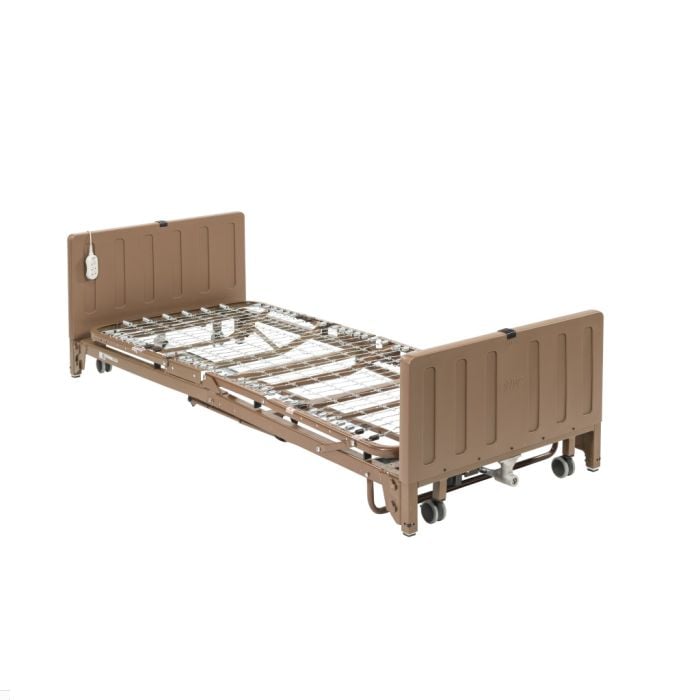

Drive Delta Full Electric High Low Bed, 3 Motor

In stock
Free Shipping and Easy ReturnsFree Shipping and Easy Returns

Full-Electric Low Height Bed with Half Rails

  • Roll at any Height 11½" (290mm) to 22"¾ " (580 mm) deck height
  • Roll at Low Height 9½" (241mm) to 19"¾ " (505mm) deck height Unit
  • Dimensions 36" (W) x 88" (L)
  • Weight 185 lbs. Carton Shipping Weight 198 lbs.
  • Weight Limit 450 lbs. (Includes occupant, mattress, side rails, trapeze, accessories, personal affects, etc.)
  • Warranty (Original Purchaser) Limited Lifetime on Welds, 5 Years on Frame, 1 Year on All Other Parts and Components
  • Low Deck height with flexibility to configure "roll at any height" or "roll at low height only" castor location (Figure A)
  • -Roll at any Height: 11 ½" (290mm) to 22 7/8" (580 mm) deck height
  • -Roll at Low Height: 9 ½" (241 mm) to 19 7/8" (505mm) deck height
  • Quiet, convenient, full electric operation provides smooth position change w/easy-to-use Hand Pendant control of Head/Foot Section positioning and overall height of the bed frame for maximum comfort and versatility for the patient or caregiver (Figure B)
  • Height-adjustment and Head/Foot deck motors come pre-installed on the foot section; no assembly required
  • In the event of power failure, top mounted Hi/Lo crank accessibility (Figure C)
  • Easy-to-transport and set up Bed ships in two cartons
  • Channel frame construction provides superior strength and reduced weight
  • Reinforced frame resists twisting and bending Long lasting Zinc-coated spring deck for Patient comfort
  • Heavy-duty bed ends; attractive, easy-to-maintain
  • Headboard is taller than footboard to blend with home décor, wood grain panels are break and scratch resistant (Figure D)
  • Labels and color-coded springs help ensure accurate installation of side rails for patient safety (Figure E)
  • High performance workhorse muscle of the 3-motor power plant is an industry standard (Figure F)
  • Half rails and full rails available (Sold separately)
  • Motor is UL Approved, Manufactured in ISO9001 facility
  • Bed, side rails and mattress safety-tested by SGS, a nationally recognized testing facility Satisfies all applicable FDA entrapment guidelines
  • Extension kit available (model #15005EXTKIT-L) extends length from 80" to 84"
  • Weight Capacity 450 lbs Includes occupant, mattress, rails, trapeze, accessories, personal affects, etc
More Information
Brand Drive Medical
MPN 15005L
Material Steel
