Image EC Mid Wheel Drive Power Wheelchair | 18" Seat
Limited Lifetime on Frame | 14 Month Limited on Electronics, Controller and Drive Train components | 6 Month Limited on Battery

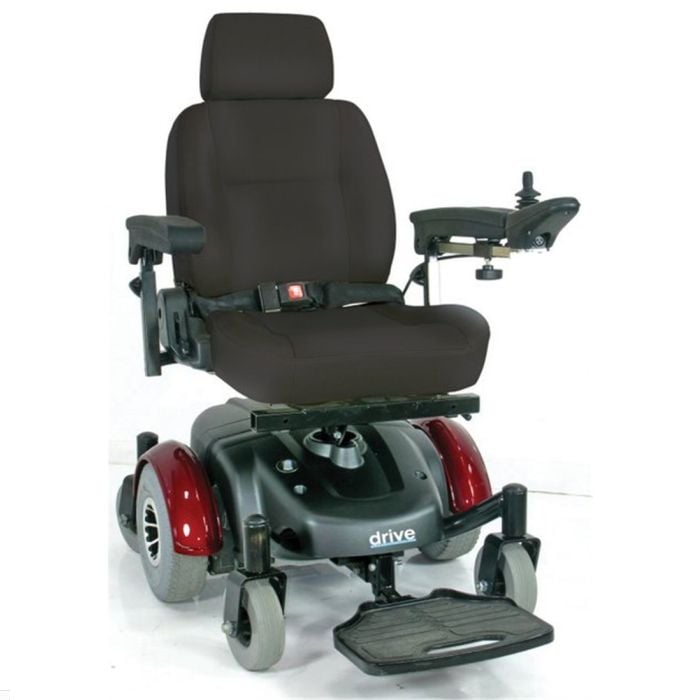

The Image EC Mid Wheel Drive Power Wheelchair from Drive Medical offers a reliable mobility solution for anyone that is on the go. Almost everything on this chair is adjustable; from a reclining backrest with adjustable headrest (that also folds down), to the height of the chair and to the flip up armrests, which allow easy transfer, that are height and width adjustable. The controller can be fitted onto either armrest allowing you to operate the chair with ease even if you have limited dexterity. The mid wheel drive provides you with a feeling of superior control, enhanced by a slim turning radius. The Image EC is the perfect choice for increasing your mobility and is stylish to boot. The included red and blue interchangeable panels let you decide how the power chair looks whenever you want.
Features and Benefits- Includes interchangeable color shrouds in red and blue
- Front suspension system for extra-smooth ride
- Height-adjustable swiveling Captain's seat features fold-down backrest
- Seat back reclines and features adjustable headrest
- Adjustable-length controller mount
- Armrests are padded, adjustable, and removable
- Adjustable, flip-up footplate
- Positioning belt included
- Flat-free, non-marking tires
- Easy freewheel operation
- Easy access to batteries from the rear of the chair
Product Specifications
- Actual Product Weight: 192 lbs
- Anti Tip Wheels: Yes
- Batteries: 2 - 12V 35AH
- Battery Weight: 53 lbs
- Brakes: Electromagnetic
- Casters: 6"
- Charger: Offboard, 4A
- Climbing Angle: 6 degrees
- Controller: PG VR2 50A
- Drive Wheels: 10" x 3" Flat Free
- Ground Clearance: 2"
- Heaviest Piece: 88 lbs
- Max Speed: 4.5 mph
- Maximum Range: 15 miles
- Motor: 2 - 24V x 200W x 3900rpm
- Number of Wheels: 6
- Overall Product Height: 42"
- Overall Product Length: 42"
- Overall Product Width: 24"
- Primary Product Color: Red, Blue
- Primary Product Material: Steel
- Product Weight Capacity: 300 lbs
- Seat Depth: 16"
- Seat Weight: 51 lbs
- Seat Width: 18"
- Seat to Floor Height: 20"-23"
- Seat to Foot Deck: 15.5"-18.5"
- Steering Type: Joystick
- Turning Radius: 27.5"
- Wheelchair Weight Without Battery: 139 lbs
- Warranty: Limited Lifetime on Frame; 14 Month Limited on Electronics, Controller and Drive Train components; 6 Month Limited on Battery
Model # 2800ecbu-rcl
| Brand | Drive Medical |
|---|---|
| MPN | 2800ecbu-rcl |
| Material | Steel |
